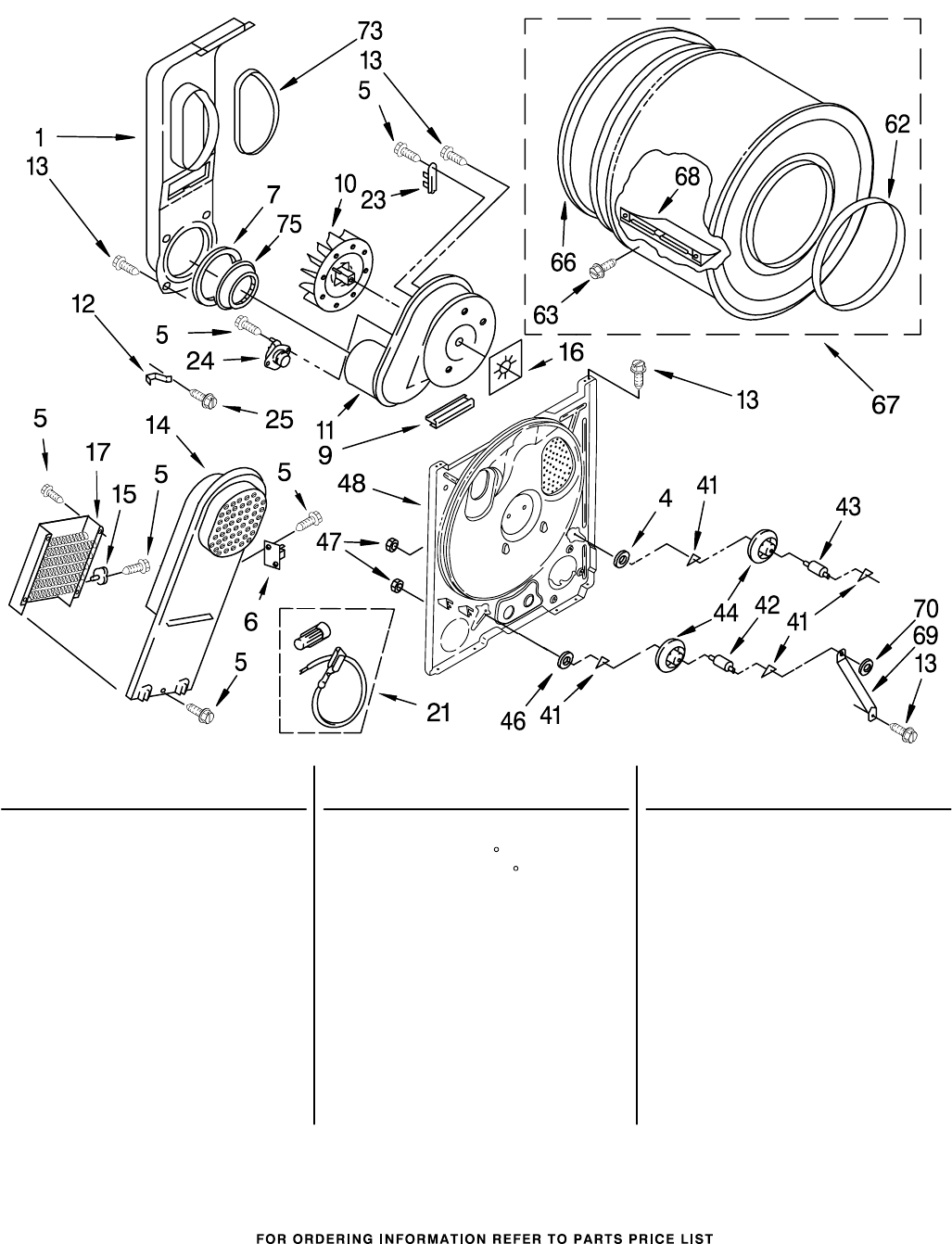

BULKHEAD PARTS

5

For Model: LEN3634DW0

(White)

4377455

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

1 694283 Lint Chute Assembly

4 3388703 Washer, Support

5 90767 Screw, 8 x 3/8

6 3399848 Thermal Cut−Off

(Hi−Limit

Thermostat Illus.

No.15 Included)

7 347139 Seal, Lint

Chute

9 3392247 Pad, Blower

Housing

10 694089 Wheel, Blower

11 695081 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 3397566 Box, Heater

15 3390291 Thermostat,

250

F

(121.1

C) (60 Hz.)

16 3392123 Seal, Blower

Shaft

17 3398064 Element, Heater

(For 240 Volt

Installation)

21 279457 Wire Kit (For

Heater Element

Wiring Harness

Repair)

23 3392519 Fuse, Thermal

24 3387134 Thermostat,

Internal Bias

25 3400800 Screw, 8−18 x 3/4

41 690997 Ring, Tri

42 3399506 Shaft, L.H.

43 3399507 Shaft, R.H.

44 3397588 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8−16

48 3397264 Bulkhead

62 3394508 Ring, Bearing

63 97787 Screw, 11−16 x 7/8

66 337449 Seal, Rear Drum

67 3396775 Drum Assembly

68 342847 Baffle, Drum

69 3394133 Bracket, Support

70 90296 Clip

73 339956 Seal

75 696302 Shield, Exhaust
