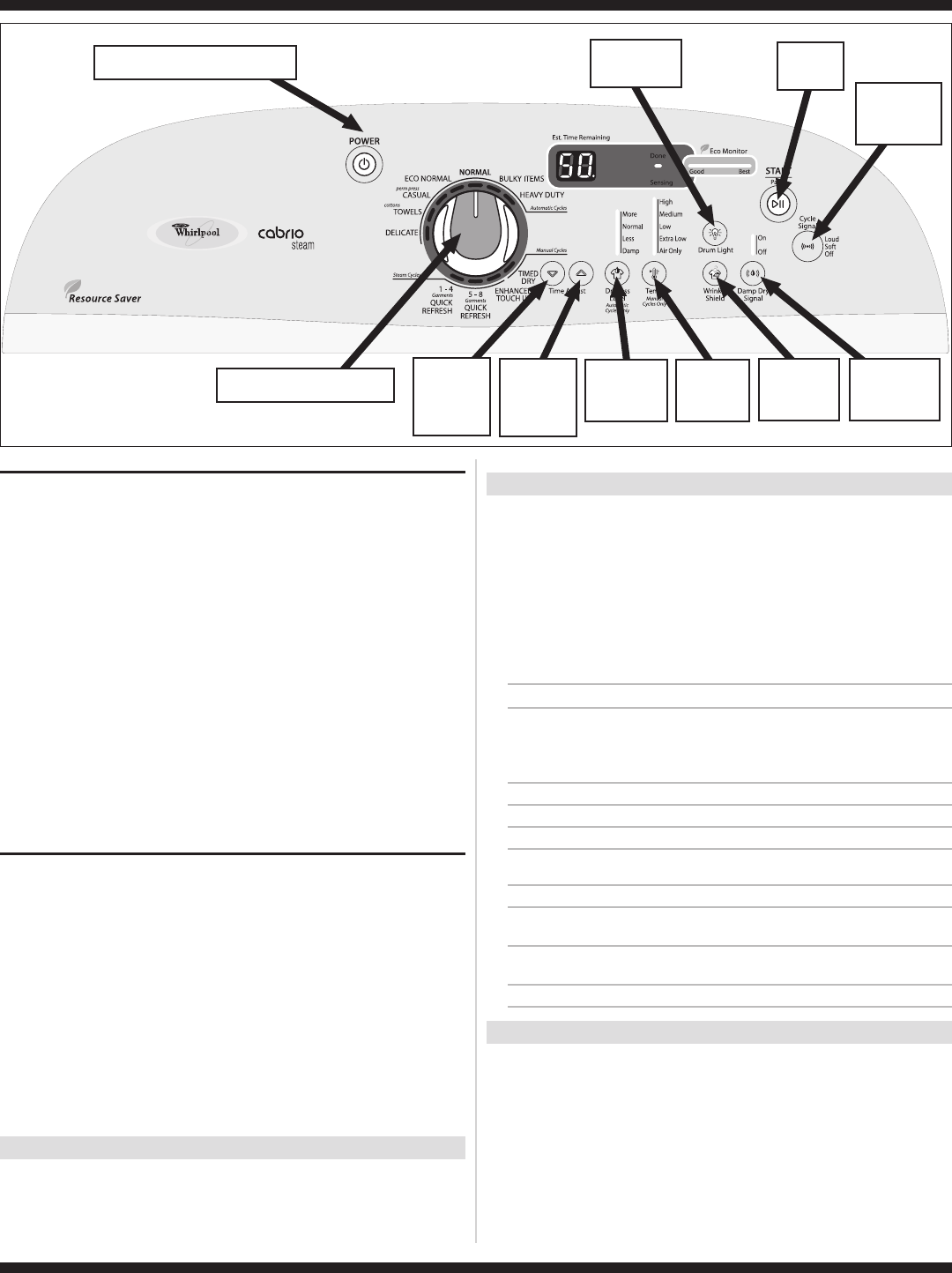

Figure 1.
Console Diagnostics.
DIAGNOSTIC: Displaying Inlet Air Flow
Used to display the air flow value at the inlet of the heater box being measured by
the machine control.
After all saved fault codes have been displayed, press the Wrinkle Shield button
to activate air flow detection. A 30 or 50 second countdown timer will start and the
dryer will turn on.
➔ If the dryer is cold, the countdown will start at 50 seconds.
NOTE: If the dryer is extremely cold (less than 40°F [4.4°C]), the air flow may
not be detected properly, and “--” will be displayed.
➔ If the dryer is hot, the countdown timer will start at 30 seconds (cool down
period) followed by an additional 50 second countdown.
A Dryness Level modifier LED will also be illuminated to indicate the air flow
range corresponding to the number displayed.
■
The More LED will be illuminated for air flow readings above 40 cfm.
■
The Normal LED will be illuminated for air flow readings between 29 and 40 cfm.
■
The Less LED will be illuminated for air flow readings less than 29 cfm.
➔ If air flow value is low, check to make sure the lint screen is clean, the door
seal is in place, and the vent is not obstructed.
DIAGNOSTIC: Displaying Line Voltage
Used to display the line voltage currently being measured by the machine control:
After all saved fault codes have been displayed, press the Cycle Signal
button. The last 2 digits of the voltage value will be displayed on the dual
7-segment display.
A Dryness Level modifier LED will also be illuminated to indicate the voltage range
corresponding to the number displayed. The Dryness Level LEDs relate to specific
voltage ranges as follows:
■
The More LED will be illuminated for high voltage readings (above 260 VAC).
■
The Normal LED will be illuminated for normal voltage readings (200-260 VAC).
■
The Less LED will be illuminated for low voltage readings (below 200 VAC).
➔ If the line voltage is not seen on L2, the display will flash .
Go to TEST #1, page 4.
DEACTIVATING THE DIAGNOSTIC TEST MODE
Press the Power button twice to exit diagnostics.
ACTIVATING THE MANUAL LOAD TEST
1. Be sure the dryer is in standby mode (plugged in with all indicators off, or with
only the Done indicator on).
2. Select any one button (except Power) and follow the steps below, using the
same button (remember the button):
Press/
hold 2-5
seconds
➔
Release
for 2-5
seconds
➔
Press/
hold 2-5
seconds
➔
Release
for 2-5
seconds
➔
Press/
hold 2-5
seconds
➔
Release
for 2-5
seconds
➔
Press/
hold 2-5
seconds
flashes momentarily, the motor starts right away, and the Heavy Duty LED
flashes (this step starts the Manual Load sequence):
1. Turn on motor.
➔
Flash “Heavy Duty” LED.
Now press any key (except Power) and the control will advance through each step
of the following sequence:
Non Steam Model
2. Motor + heater.
➔
Flash “Casual” LED.
3. No loads on (motor + heater).
➔
Flash “Normal” LED.
4. Repeat using same button.
➔
Start sequence again at 1.
Steam Model
2. Motor + heater + water valve.
➔
Flash “Delicate” LED.
3.
Motor + heater + water valve +
drum light.
➔
Flash “Drum Light” LED.
4.
No loads on (motor + heater +
water valve).
➔
Flash “Normal” LED.
5. Repeat using same button.
➔
Start sequence again at 1.
DEACTIVATING THE MANUAL LOAD TEST
Press the Power button to exit this mode.
L
2
88
Power button controls “Sensing”
and “Done” indicators.
“Less Time”
button turns
the right digit
of the display
on or off.
“More Time”
button turns
the left digit
of the display
on or off.
Rotating the knob turns indicators
on or off.
Dryness Level
button controls
all indicators
above button.
Temp button
controls all
indicators
above button.
Wrinkle Shield
button controls
its own
indicator.
Damp Dry Signal
button controls
all indicators
above button.
Cycle Signal
button controls
the Eco Monitor
LEDs.
Start button
turns on the
dryer.
Drum Light
button controls
its own indicator.
